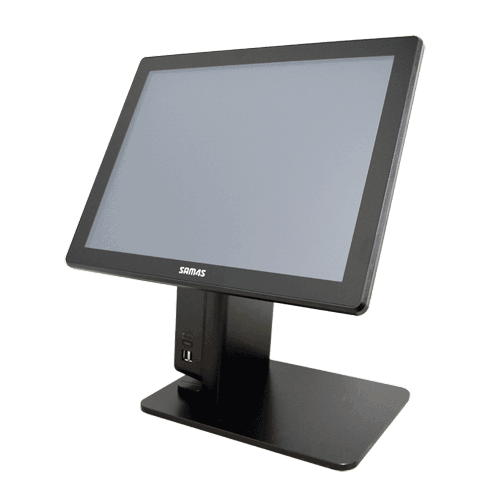

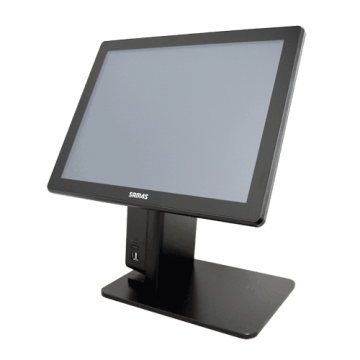

SAM4S FORZA-135 i3 PCAP 4G 128G SSD WIN10Iot Black

NZ $2,400.00
(Inc GST)
For Special & Volume Pricing - Call 0800 112 970
FORZA135S/GODNN54GNB
+

Description

FORZA FANLESS,15”, INTEL i3 7100U CPU, 4GB DDR4 RAM, 128G SSD, WIN10 IoT 64 Bit, Black & Black

  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel 7th Generation (Kaby Lake) Intel® Core™ i3 Processor 7100U 2.40 GHz, 3 MB SmartCache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • Easy Assembly & Maintnance
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Supporting M.2 SSD
CPU
Intel 7th Generation (Kaby Lake) Intel® Core™ i3 Processor 7100U 2.40 GHz, 3 MB SmartCache
Memory
DDR4 2 Slots (up to 32 GB)
Standard in Australia 4GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
15" LED Backlight LCD Display
Resolution
1024 x 768
Tilt Angle
N/A
Touch Panel
True Flat PCAP Touch (Standard in Australia)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x RJ45) with 5V/12V BIOS selectable
6 x Standard USB Ports
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x HDMI Port
1 x DP Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
Optional Extension Ports:
Type A; 4 x USB Port
Type B: 2 x RS232 Ports (1 x DB9, 1 x RJ45)
Type C: 1 x Parallel port
Audio
Internal Speaker 2W
OS Support
POSReady 7 / WIN 8.1 Industry Retail / WIN 10 IoT Enterprise
Environmental Sealing
IP55 to Front
Operating Environment
0 ~ +40 °C, 20 ~ 85% RH with SSD
Storage Environment
-20 ~ +60 °C, 10 ~ 85% RH
Power Supply
DC 12V/5A
External Dimensions (WxDxH)
355 x 215 x 432 mm
Weight
5.35 Kg
