Spacedec SD-POS-VBM MULTI Vesa Ball Mount

SD-POS-VBM
NZ $179.00 (Inc GST)
For Special & Volume Pricing – Call 09 886 4685
+

Need Help

Choosing a Product
09 886 4685 Live Chat Email Us
Talk to our technical Expert
price match

Description

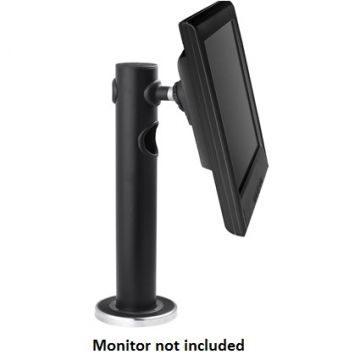

The POS Multi is perfect for point of sale applications, including touch screens thanks to the ability to lock the display in the desired position. This mount integrates cutting-edge security features into a contemporary and sleek design. Concealed mounting hardware and internal cable management dramatically enhance theft resistance and provide a safe and secure installation. The mount also comes with a rotation locking mechanism, enabling the degree of rotation to be fixed before installation. This prevents the screen being rotated for full public view, giving you and your customers extra piece of mind that their confidential information is protected. 20 degree display adjustment in any direction allows you to set the screen to maximize display impact, alongside our quick release mechanism to enable fast and easy screen attachment or replacement. Supports displays weighing up to 44lbs (20kg). can also be converted to a dual mount holding two screen back to back. ( Dual mount kit sold separately)

Main Features:

Flexible mounting-
  • Designed for screens 12" (30.5cm) or larger
  • Supports 1 (or optionally 2) displays, each weighing up to 20kg (44lbs)
  • Integrated cable management with dual cable exit points
  • Features a quality finish with hidden desk mounting
  • Supports cable-style display locking devices (not included)

Enhanced positioning adjustment-
  • Provides a fixed 330mm viewing height
  • Pole allows for horizontal rotation
  • Rotation limits can optionally be set during installation (fixed, 90º, 180º, 270º or 355º)

Enhanced viewing adjustment-
  • Integrated ball-joint mechanism with adjustable tension control
  • Allows full 360º screen rotation
  • Allows +/-20º tilt adjustment
  • Allows +/-20º pan adjustment

Easy to Install-
  • Quick attachment head with security screw
  • Supports displays with standard VESA mounting hole configurations 75x75mm & 100x100mm (WxH)
  • Also supports VESA 200x100mm via optional adaptor AC-AP-2010 (sold separately)
  • Supplied with installation guide and templates, display mounting hardware and screws for desk attachment

Durable Design-
  • Steel and aluminium construction with quality matt powdercoat finish
  • 10 year warranty

Attachments

Spacedec SD-POS-VBM Installation manual (SD-POS-VBM__manual.pdf, 410 Kb) [Download]

Spacedec SD-POS-VBM product brochure (SD-POS-VBM__brochure.pdf, 733 Kb) [Download]

Spacedec SD-POS-VBM Technical specs (SD-POS-VBM_Technical_specs.pdf, 210 Kb) [Download]
